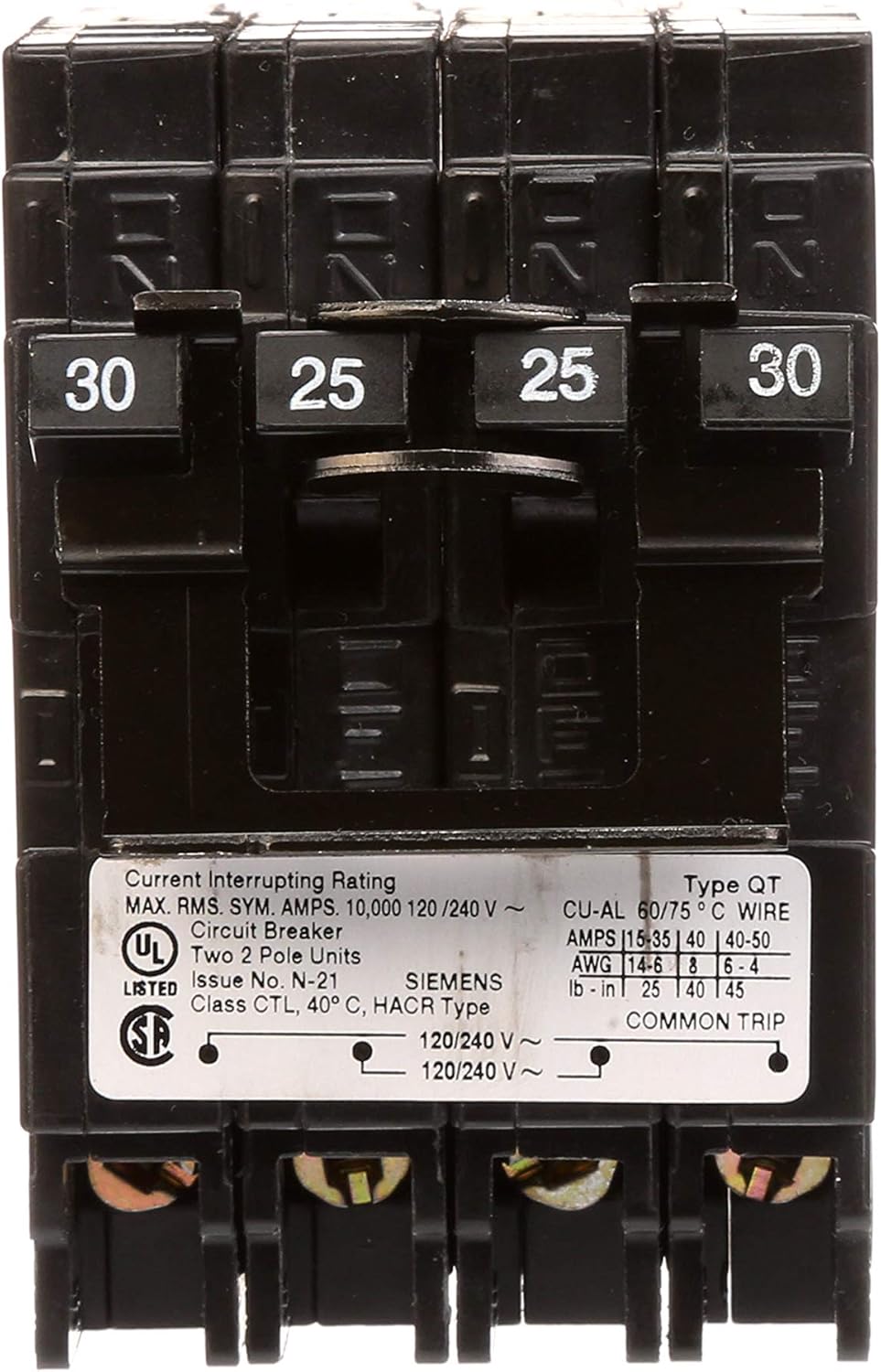

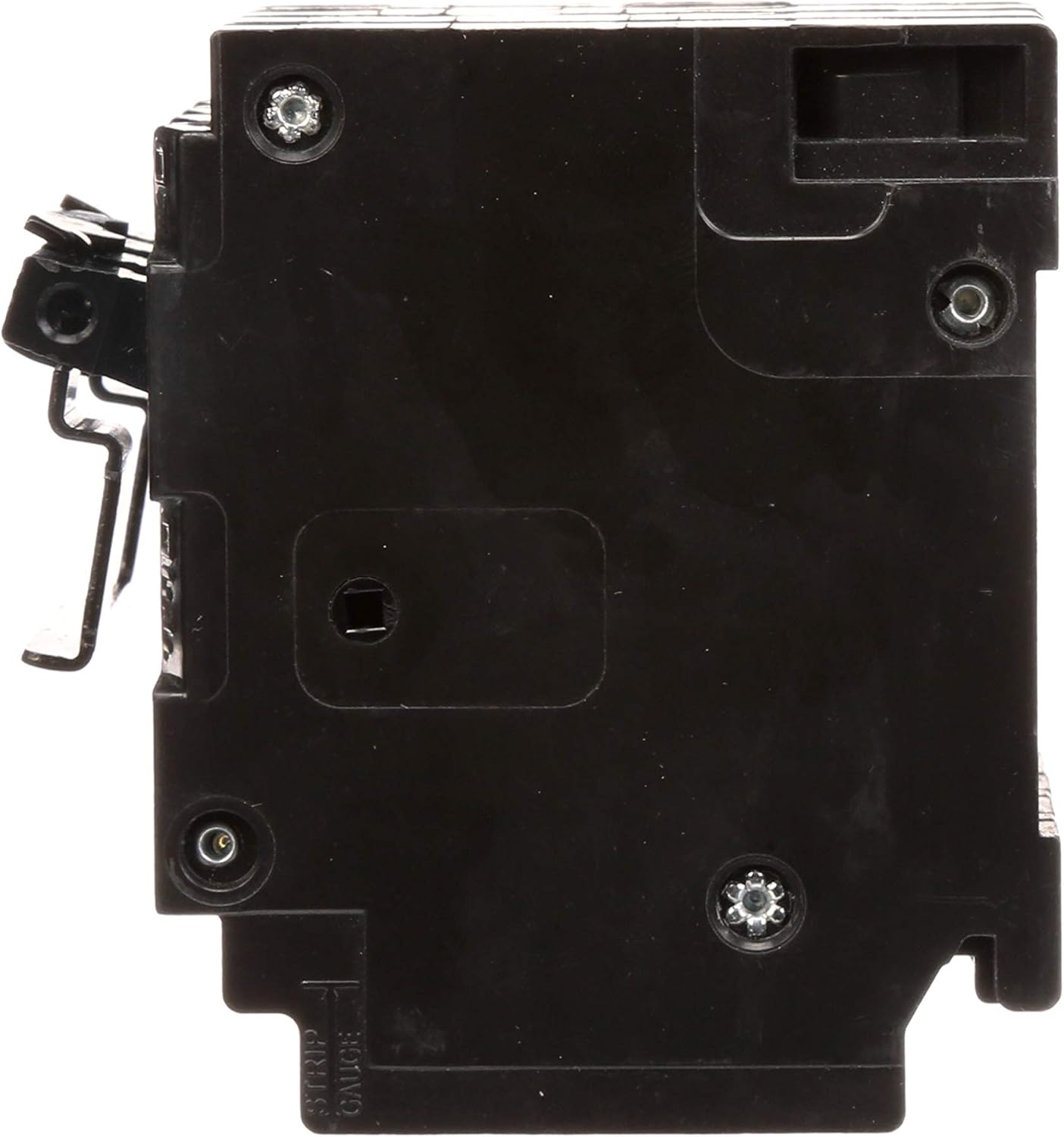

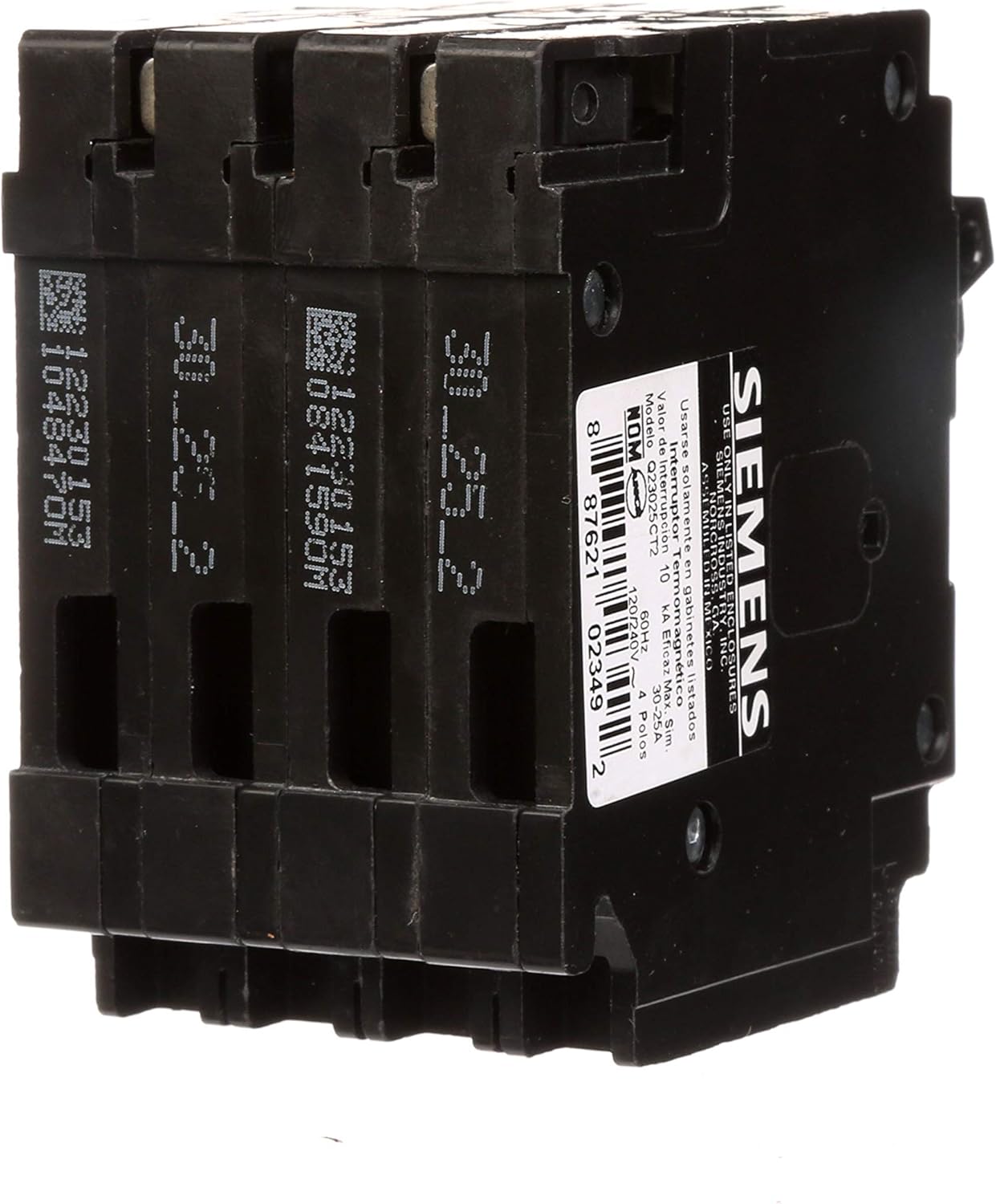

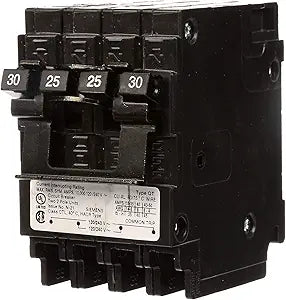

30/25 Amp Quad Circuit Breaker

Features & Specifications

• Model / Type: Siemens Q23025CT2 Quadplex / Quad Circuit Breaker

• Poles: 4-pole (quad) — effectively combines two double-pole breakers in one unit (one 30 A double pole + one 25 A double pole)

• Amperage: 30 Amp (for one double-pole section) and 25 Amp (for the other section) Voltage Rating: 120/240 VAC (for residential split-phase systems)

• Interrupting Rating (AIC): 10,000 A (10 kA) typical for this type quad breaker

• Mounting / Style: Plug-in style (suitable for Siemens panels that accept QT/quad style breakers)

• Width / Space Requirement: Requires 2 inches of breaker space in the panel (since quad breakers are “wider”)

• Standards / Safety Listings: UL listed, ANSI, CSA (depending on model)

• Common Trip / Independent Trip: Depends on version — some quad breakers have common trip so all poles trip together, others may be independent. (Check the “CT” suffix in model for common trip)
