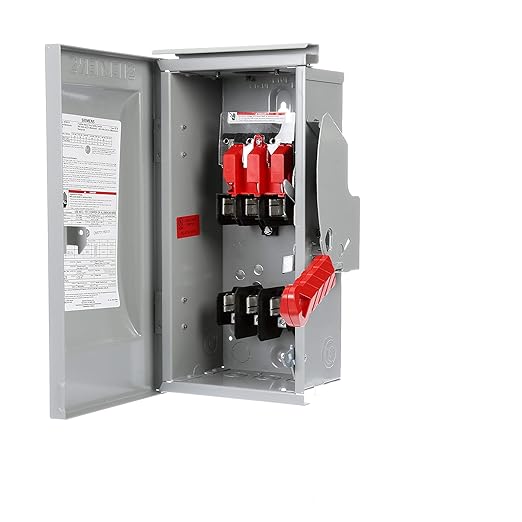

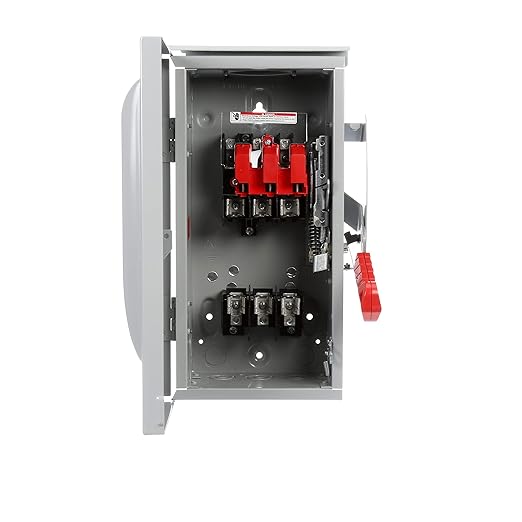

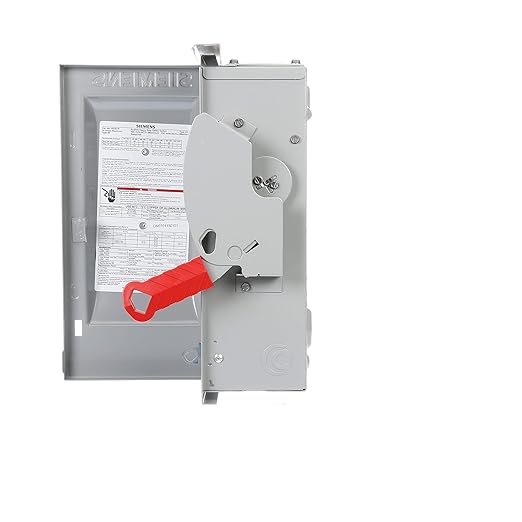

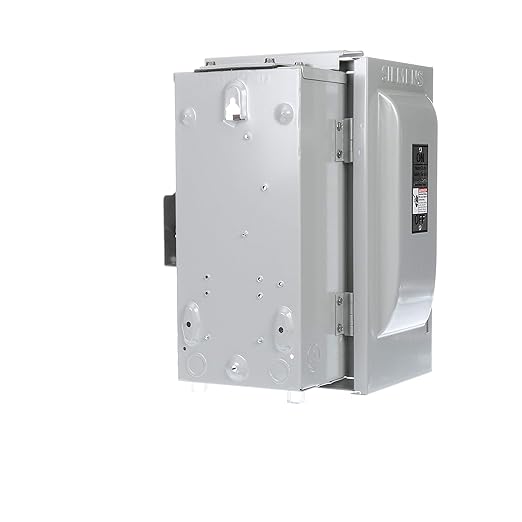

Siemens HF361 30-Amp 3 Pole 600-volt 3 Wire Fused Heavy Duty Safety Switches

Features & Description:

• Type: Fusible, Heavy Duty Safety Switch

• Voltage Rating: 600 VAC / 250 VDC

• Amperage Rating: 30 Amps

• Poles: 3

• Wires: 3

• Enclosure Type: NEMA Type 1 (Indoor)

• Mounting Type: Surface Mount

• Horsepower Rating: 15 HP at 600 VAC, 3 Phase

• Short Circuit Rating: 200 kA RMS

• Fuse Type: Class H/J/K/R Time Delay

• Actuator: Highly visible red handle

• Operating Mechanism: Quick-make, quick-break

• Arc Chutes: Dissipate heat and prolong switch life

• Terminal Shield: Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals

• Padlocking: Handle can be padlocked in the off position with up to (3) padlocks with 5/16 Inch hasps

• Knockouts: Tangential knockouts through 600 A for easy conduit lineup

• Door: Side hinged door that opens past 180 degrees for easier wiring

• Material: Galvanized Steel

• Certifications: UL 98
