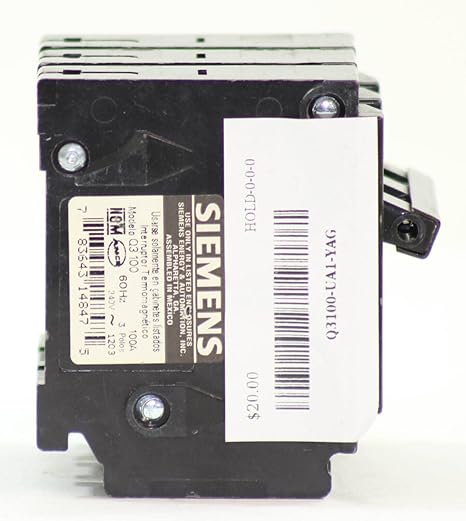

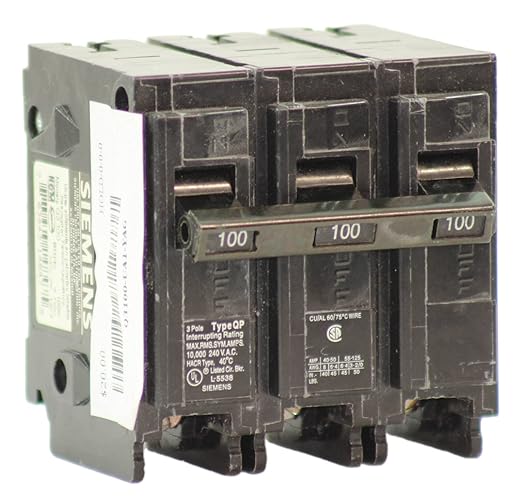

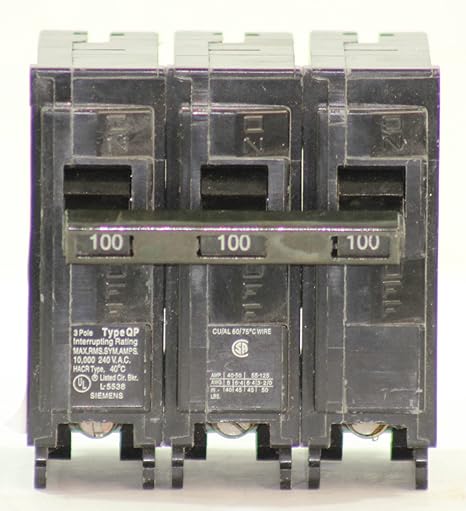

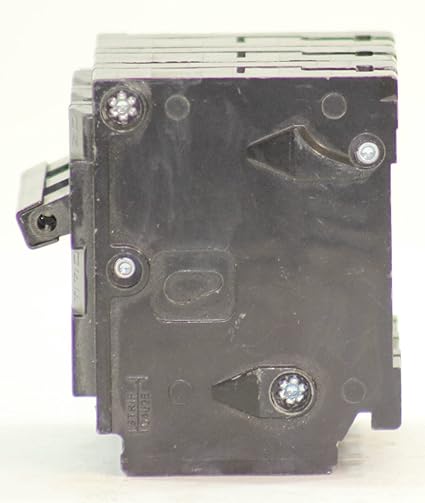

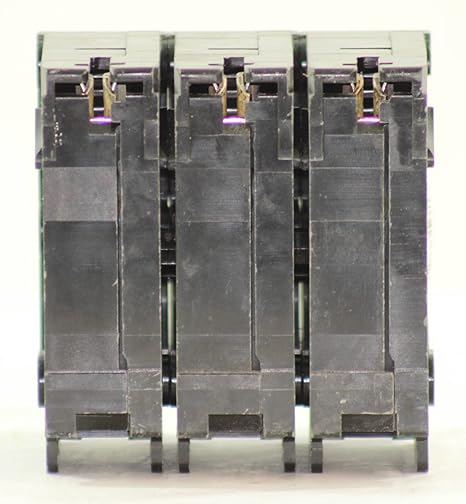

SIEMENS Q3100 100-Amp Three Pole Type QP Circuit Breaker

🇬🇧 Specifications (English)

• Model: Q3100

• Type: Molded Case Circuit Breaker (MCCB)

• Poles: 3

• Amperage: 100 Amps

• Voltage: 240 VAC

• Interrupting Rating: 10 kAIC

• Connection Type: Plug-In

• Phase: 3

• Trip Type: Thermal Magnetic

• Wire Size: #8 to #2/0 AWG Copper or Aluminum

• UL Listed: Yes

• HACR Rated: Yes

• Weight: 1.91 lbs (0.87 kg)

• Dimensions: 3" (L) x 3" (W) x 3.5" (H)

• Material: Copper
